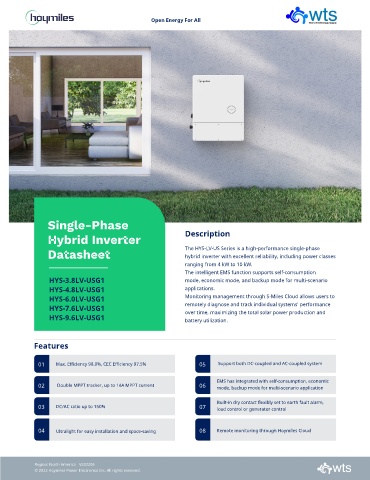

Page 16 - WTS Catalog 2025

Open Energy For All

Single-Phase

Hybrid Inverter Description

Datasheet The HYS-LV-US Series is a high-performance single-phase

hybrid inverter with excellent reliability, including power classes

ranging from 4 kW to 10 kW.

The intelligent EMS function supports self-consumption

HYS-3.8LV-USG1 mode, economic mode, and backup mode for multi-scenario

HYS-4.8LV-USG1 applications.

HYS-6.0LV-USG1 Monitoring management through S-Miles Cloud allows users to

HYS-7.6LV-USG1 remotely diagnose and track individual systems' performance

over time, maximizing the total solar power production and
HYS-9.6LV-USG1 battery utilization.

Features

01 Max. Efficiency 98.0%, CEC Efficiency 97.5% 05 Support both DC-coupled and AC-coupled system

EMS has integrated with self-consumption, economic

02 Double MPPT tracker, up to 14A MPPT current 06 mode, backup mode for multi-scenario application

Built-in dry contact flexibly set to earth fault alarm,

03 DC/AC ratio up to 150% 07 load control or generator control

04 Ultralight for easy installation and space-saving 08 Remote monitoring through Hoymiles Cloud
